Modular brush roll for testing bristle cleanability
Task: Design a brush roll to allow for rapid testing of cleaning capabilities for various bristle types
Design goals:
-
Brush roll must be capable of running multiple sets of bristle segments simultaneously
-
Modular - must be able to easily interchange bristle segments on brush roll
-
Must interface with current Shark vacuums
End segment of brush roll. Geometry here is meant to interface with vacuum
Other end segment of brush roll

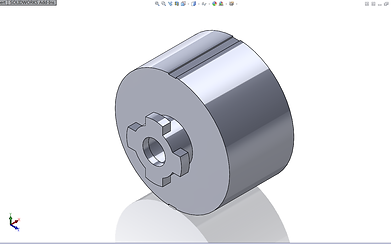

One brush roll segment. Note indentation in outer diameter to accommodate bristle strip. Extrusion in center of segment is used to lock into the back of another segment
Opposite end of segment shown above. Indentation in center allows for another segment to lock into this one simply by twisting
